pade meeting page auto refreshed after the second people join the room #463
Description
>

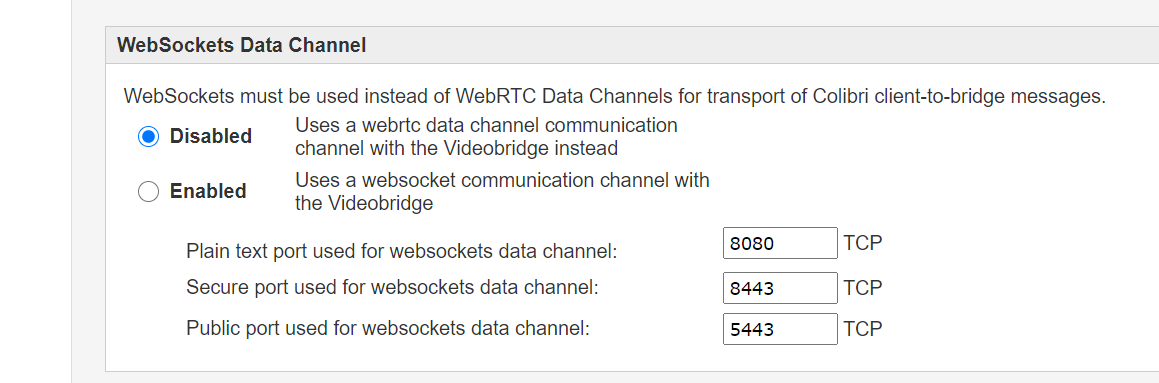

I disabled WebSockets Data Channel ,but Pade still use WebSocket (openfire-pade-plugin 1.7.7 deploy in CentOS 7.8 with nginx ,single node).
refer Considerations-On-Setting-Up-Pade-Behind-a-Reverse-Proxy
web log:
lib-jitsi-meet.min.js:17089 WebSocket connection to 'wss://node2:7443/colibri-ws/node2/85aa57dc31a34d65/39ddc58c?pwd=4a24ggqqr8e56a6ilf3rccrdp6' failed: js log
2023-11-29T17:01:25.716Z [modules/xmpp/Lobby.js] <5369/_maybeJoinLobbyRoom/<>: Failed joining lobby undefined
2023-11-29T17:01:39.308Z [conference.js] <_onConferenceFailed>: CONFERENCE FAILED: conference.restartedserver log:
[root@node2 logs]# tail -200f openfire.log | grep colibri-ws
2023.11.29 13:33:49 DEBUG [Thread-14]: org.jivesoftware.openfire.plugin.ofmeet.JitsiJvbWrapper - WARNING: [1] ColibriWebSocketService.<init>#51: Websockets enabled, but no domains specified: URLs=[wss://node2:7443/colibri-ws/node2], Relay URLs=[]
2023.11.29 13:33:49 DEBUG [Thread-14]: org.jivesoftware.openfire.plugin.ofmeet.JitsiJvbWrapper - INFO: [1] ColibriWebSocketService.registerServlet#87: Registering servlet with baseUrls = [wsnginx conf:
public -> nginx -> local
https://demo.resource.com:7666 ->nginx 80 -> https://local:7443
https://demo.resource.com:7667->nginx 7442 ->UDP stream 10000
upstream Pade_7443{
server 127.0.0.1:7443;
}
server {
listen 80 ssl;
server_name test.resource.com;
ssl_certificate /etc/nginx/conf.d/ssl/private.crt;
ssl_certificate_key /etc/nginx/conf.d/ssl/private.key;
ssl_session_cache shared:SSL:1m;
ssl_session_timeout 5m;
proxy_ssl_verify off;
location /colibri-ws/ {
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
proxy_pass https://Pade_7443/colibri-ws/;
}
location /ws/ {
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
proxy_pass https://Pade_7443/ws/;
}
#location /pade/ {
# proxy_pass https://Pade_7443/pade/;
#}
location /http-bind/ {
proxy_pass https://Pade_7443/http-bind/;
}
location /ofmeet/ {
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_connect_timeout 300;
# Default is HTTP/1, keepalive is only enabled in HTTP/1.1
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
proxy_set_header Connection "";
chunked_transfer_encoding off;
proxy_pass https://Pade_7443/ofmeet/;
}moderator join the meeting; then participant join the meeting .
for example meeting url : https://test.resource.com:7666/ofmeet/riw1o02ha
1.pblic network access : Error occurred page auto rereshed, video broken but can send msg
2.local network access : page with error ,but video and msg worked
update pade conf,but still not work,page auto refreshed video broken but can send msg.
append config in openfire.ofproperty : ofmeet.websockets.domain->test.resource.com; update ofmeet.websockets.publicport -> 7666 ,still not work.
Originally posted by @Jenfong in #119 (comment)
